ANNKE 8Channel 5IN1 DVR 3K TVI AHD CVI CVBS IPC
ANNKE 8Channel 5IN1 DVR 3K TVI AHD CVI CVBS IPC
Couldn't load pickup availability

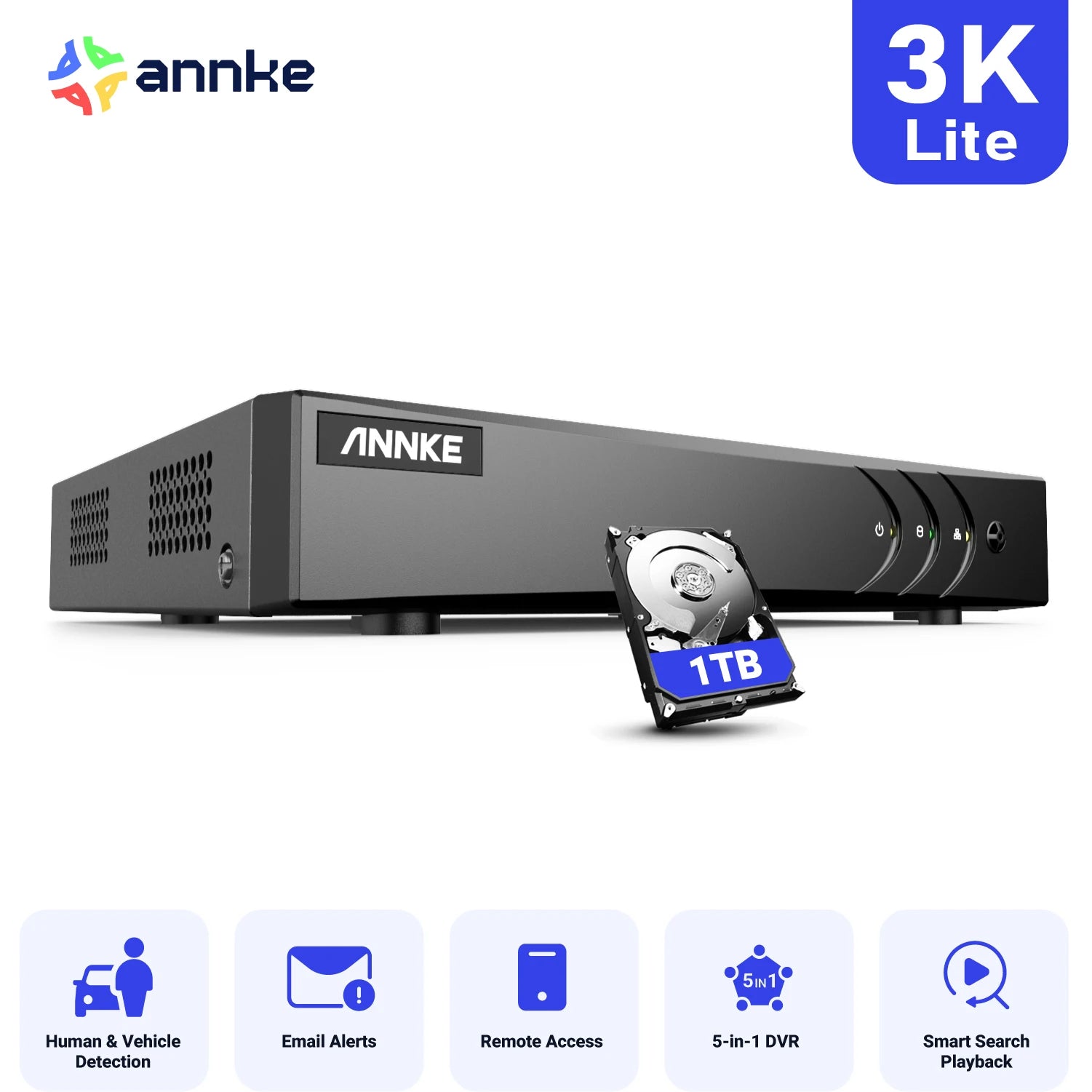

Experience up to 3K live viewing and 3K Lite recording with a 5-in-1 DVR that lets you mix TVI/AHD/CVI/CVBS and IPC inputs for flexible surveillance.
- 8-channel Analog HD plus 2 IP inputs (up to 6MP). In IP-enhanced mode, you can expand to 12 channels, with full 5-in-1 TVI/AHD/CVI/CVBS/IPC compatibility.

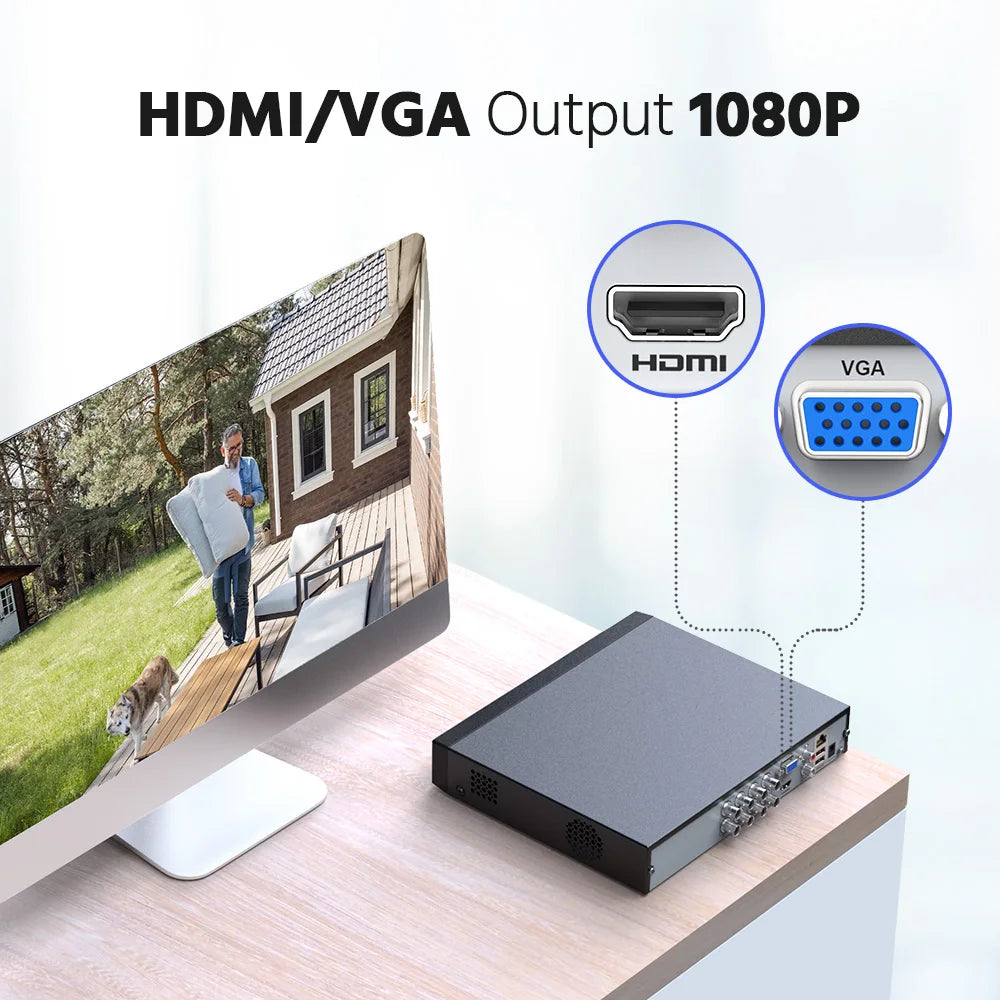

- Video compression options include H.265 Pro+, H.265, and H.264+/H.264; HDMI and VGA outputs up to 1080P and a SATA HDD interface up to 10TB.

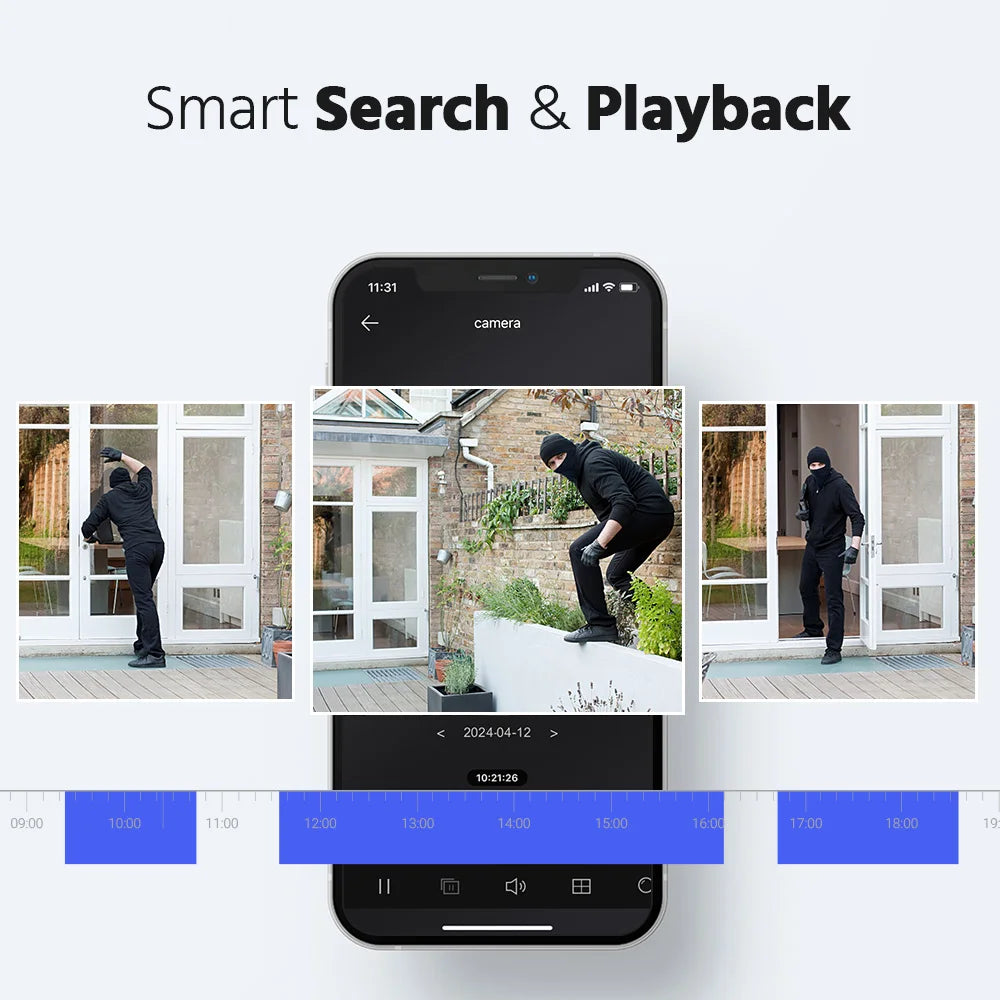

- Motion Detection 2.0 uses deep learning to classify humans and vehicles on all analog channels; you can quickly search by object or event type to cut false alerts.
- You can remotely monitor on iPhone, iPad, and Android; 96 Mbps total bandwidth; RJ45 10/100M; audio: 1-ch RCA input plus 8-ch via coax and 1-ch RCA output.
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265 Pro+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
8-ch |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Total Bandwidth |
96Mbps |
|
Remote Connection |
64 |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
